Execelitas Cermax PE150AF
Overview
CERMAX® XENON SHORT-ARC LAMPS
| Operational Specifications | ||
| Description | Nominal | Range |
| Power | 150 Watts | 100-150 Watts |
| Current | 11 amps (DC) | 10-14 amps(DC) |
| Operating Voltage | 11.7 Volts (DC) | 10-13.6 Volts(DC) |
| Ignition Voltage | 23 Kilovolts(system dependant) | |
| Temperture | 120℃ (Maximum) | |
| Life Time | 1000 hours typical | |
| Initial Output at Nominal Power | |
| F= UV Filtered Output | |
| Description | PE150AF |
| Radiant Output* | 16 Watts |
| UV Output* | 0.9 Watts |
| IR Output* | 8 Watts |
| Visible Output* | 1350 Lumens |
| Color Temperature | 5900° Kelvin |
| Peak Instabilities | 4% |
* These values indicate total output in all directions. Wavelengths = UV<390 nm, IR>770 nm,
Visible: 390 nm-770 nm
* End of life is defined as 50% initial output
* Nominal values at 150 watts after 2 hour burn-in.
| Description | Visible Output | Total Output* |
| 3 mm aperture | 700 Lumens | 5.5 Watts |
| 6 mm aperture | 900 Lumens | 8.0 Watts |
NOTES:
1. Lamp must not be operated with window facing upwards within 45° of vertical.
2. Seal temperature must not exceed 150°.
3. Current/power regulated power supplies and Excelitas lamp housing units are recommended.
4. Lamp must be operated within recommended current and power range. Over powering may lead to arc instability, hard starting and premature aging.
5. Hot mirror assembly is available for IR filtering.
6. Cermax® Xenon lamps are much safer lamps to use than their quartz xenon arc lamp equivalents. However, caution must be practiced when operating lamps because they are under high pressure, require high voltage, reach temperatures up to 200℃ , and their IR and UV radiation can cause skin burns and eye damage. Please read the Hazard Sheet included with each lamp shipment

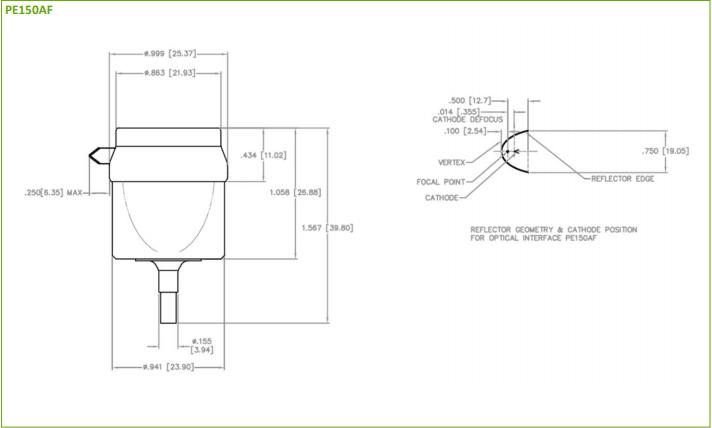

Mechanical Dimensions：
Spectral Output：
