Execelitas Cermax PE175BFA
Overview
CERMAX® XENON SHORT-ARC LAMPS
| Operational Specifications | ||
| Description | Nominal | Range |
| Power | 175 Watts | 150-200 Watts |
| Current | 14 amps (DC) | 12-16 amps(DC) |
| Operating Voltage | 12.5 Volts (DC) | 11-14 Volts(DC) |
| Ignition Voltage | 23-35 Kilovolts(system dependant) | |
| Temperture | 150℃ (Maximum) | |
| Life Time | 1000 hours typical | |
| Initial Output at Nominal Power | |
| F= UV Filtered Output | |
| Description | PE175BFA |
| Peak Intensity | 350x10³ Candelas |
| Radiant Output* | 25 Watts |
| UV Output* | 1.2Watts |
| IR Output* | 14 Watts |
| Visible Output* | 2200 Lumens |
| Color Temperature | 5900° Kelvin |
| Peak Instabilities | 4% |
| Beam Geometry** | 5°/6°/7° |
* These values indicate total output in all directions. Wavelengths = UV<390 nm, IR>770 nm, Visible: 390 nm-770 nm
* Beam Geometry defined as the half angle at 10% PTS after 0/100/1000 hour
| Description | Visible Output | Total Output* |
| 3 mm aperture | 830 Lumens | 8 Watts |
| 6 mm aperture | 1400 Lumens | 13 Watts |
* Nominal values at 175 watts after 2 hour burn-in.
NOTES:
1. Lamp must not be operated with window facing upwards within 45° of vertical.
2. Seal temperature must not exceed 150°.
3. Current/power regulated power supplies and Excelitas lamp housing units are recommended.
4. Lamp must be operated within recommended current and power range. Over powering may lead to arc instability, hard starting and premature aging.
5. Hot mirror assembly is available for IR filtering.
6. Cermax® Xenon lamps are much safer lamps to use than their quartz xenon arc lamp equivalents. However, caution must be practiced when operating lamps because they are under high pressure, require high voltage, reach temperatures up to 200℃ , and their IR and UV radiation can cause skin burns and eye damage. Please read the Hazard Sheet included with each lamp shipment

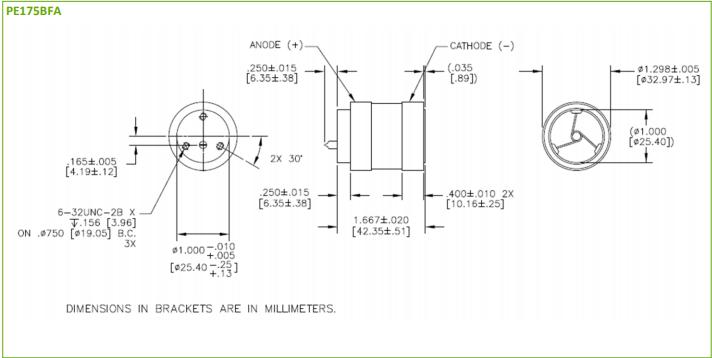

Mechanical Dimensions：

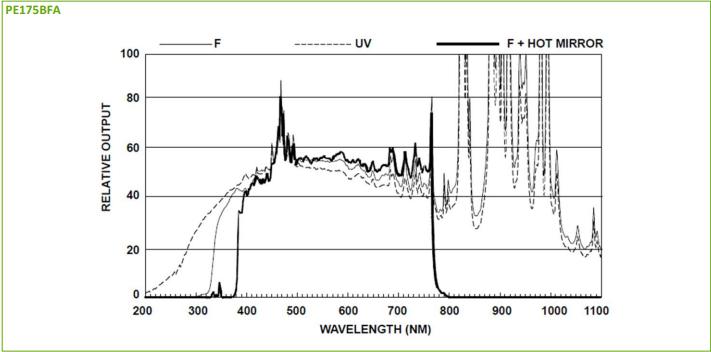

Spectral Output：
