Execelitas Cermax VAC300-F13-B-MB(Y2900)
Overview
Cermax Xenon Short ARC Lamps
| Type | VAC300-F13-B-MB(Y2900) |
| Volts | 11-14v |
| Watts | 300w |
| Life time in warranty | 500hrs |
| Main Application | Stryker X8000（220-201-000） |
| Cross Reference | VAC300-F13-B-MB(Y2900) |
Stryker X8000 Machine Technical:
| Electrical | Primary: 100 – 120 VAC, 50/60 Hz, 450 W 220 – 240VAC, 50/60 Hz, 450 W Fuses (2): 5.0A, 250V |
| Dimensions | Height: 4.75˝ (12.1 cm) Width: 12.5˝ (31.8 cm) Depth: 16.8˝ (42.7 cm) Weight: 16.0 lbs (7.3 kg) |
| Fiberoptic Cable Range | 2 – 6.5 mm diameter |
| Bulb | Type: 300 Watt Xenon (Elliptical) Life: Approximately 500 hours |
| Operating Conditions | 10 – 40°C 30 – 75% Relative Humidity |
| Transportation and Storage | -20 – 50°C 10 – 75% Relative Humidity 700 – 1060 hPa |
| Classications and Approvals | Complies with medical safety standards: • IEC 60601-1:2005 • CAN/CSA C22.2 No.601.1-M90 • UL 60601-1: 2003 Complies with medical EMC standard: • IEC 60601-1-2:2001 Class 1 Equipment Type CF applied parts Water Ingress Protection, IPX0 — Ordinary Equipment Continuous Operation |
| Patent Protection | U.S. #5,850,496; 6,110,107; and 6,689,050. Other patents pending |

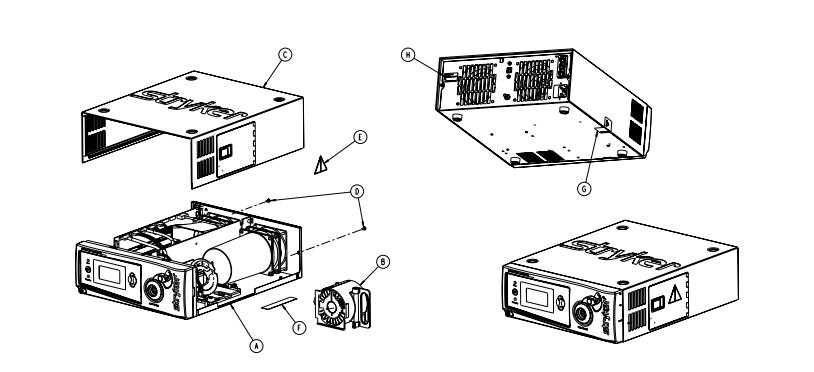

Top Chassis Assembly:
