OLYMPUS MAJ1817 XENON LAMP
Overview
Olympus Xenon Short ARC Lamps
| Type | Olympus MAJ1817 |
| Volts | 11-14v |
| Watts | 300w |
| Life time in warranty | 750hrs |
| Main Application | CLV190,290,190SL,290SL Light Source |
| Cross Reference | Olympus MAJ1817 |

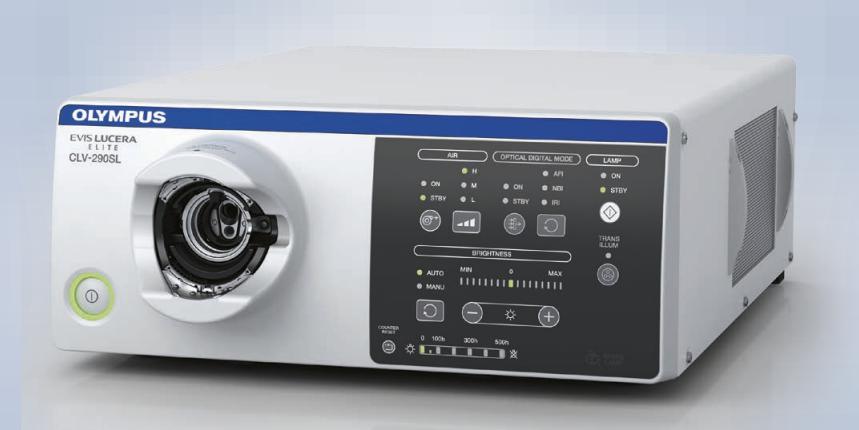

Related Machines Photos:
Related Machines Photos:
Olympus Light Source Main Features:
·NBI (Narrow Band Imaging) in EVIS LUCERA ELITE provides twice the viewable distance of EVIS LUCERA SPECTRUM, while advanced noise reduction works more effectively and image response speed from dark to bright is much faster.
· The newly designed waterproof one-touch connector allows a one-step connection to the light source and does not require a scope cable.
· Considerable reduction in operating noise thanks to redesigned fan.
· Link connection to peripheral devices avoids complicated cable connections and accelerates transmission speed. E0429302 · 500 · 05/14 · PR
· Improved AFI (Auto Fluorescence Imaging) produces less color splitting by quicker image tracking than previous models. With its high image quality and minimized noise, it helps accurate observation of mucosal conditions.
Olympus Machine Technical:
(High-intensity 300-watt light source delivers the illumination to drive HDTV and a new narrow band imaging feature enhances visualization capabilities)
| Power supply | Rated voltageRated frequency
Rated input |
100–240 V AC; within ±10% 50/60 Hz within ±3Hz
|
| Size | Dimensions (W × H × D)Weight | 370 × 150 × 476 mm (standard) 390 × 162 × 551 mm(maximum)
18.5 kg |
| Illumination | Examination lampAverage lamp life
Ignition method Brightness adjustment Cooling Color conversion Emergency lamp Average emergency lamp life |
Xenon Short-arc lamp 300wApprox 500hrs
Switching regulator Light-Path diaphragm Forced-air cooling Possible using special filter Halogen lamp 12v 35w Approximately 500hours |
| Automatic brightness adjustment | Automatic brightness adjustment method Automatic exposure | Servo-diaphragm method 17 steps |
| Air feeding | Pump Pressure switching | Diaphragm type pumpFour levels available (OFF, low, medium, high) |
| Classification | Type of protection against electric shock | Class I |
