OLYMPUS MD631 XENON LAMP
Overview
Olympus Xenon Short ARC Lamps
| Type | Olympus MD631 |
| Volts | 11-14v |
| Watts | 300w |
| Life time in warranty | 750hrs |
| Main Application | CLV-S40,180,240,260,260SL Light Source |
| Cross Reference | Olmpus MD631 |

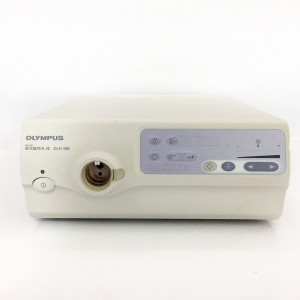

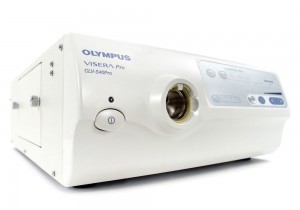

Related Machines Photos:
Olympus Light Source Main Features:
·Equipped with specially coated filters for NBI(Narrow Band Imaging)(Only for GI)
·Lamp can be turned on/off without turing off the equipment
·Automatically adjusts light intensity to achieve ideal illumination for obervation of the gastrointestinal tract
·Powerful 300-watt xenon lamp
·Backlit front panel indicators and controls improve operability
Olympus Machine Technical:
Olympus Machine Technical:
(High-intensity 300-watt light source delivers the illumination to drive HDTV and a new narrow band imaging feature enhances visualization capabilities)
| Automatic brightness control | Automatic brightness control method | Servo-diaphragm method |
| Air feeding | Automatic exposurePump
Pressure switching |
17 stepsDiaphragm type pump
Four levels available |
| Water feeding | Method | Air pressurization or detach able water container |
| Indicators on front panel | Emergency LampNBI mode
OP.1 |
Reports absenceLights in green
Sepcial filter installed |
| Illumination | Examination lampAverage lamp life
Ignition method Brightness adjustment Cooling Color conversion Emergency lamp Average emergency lamp life |
Xenon Short-arc lamp 300wApprox 500hrs
Switching regulator Light-Path diaphragm Forced-air cooling Possible using special filter Halogen lamp 12v 35w Approximately 500hours |
| Classification as medical electrical equipment | Type of protection against electric shockDegree of protection against explosion | Class IDepends on applied part |
| Power supply | VoltageVoltage fluctuation
Frequency Consumption of electric power Fuse rating Fuse size |
100-120vacWithin±10%
50/60HZ 500VA 8A,250V 5 mm*20mm |
| Size | DimensionsWeight | 393W*162H*536D15.4KG |
