PDJ-3000 Patient Monitor
Noninvasive blood pressure, heart rate, body temperature, peripheral oxygen saturation (SpO2), respiratory rate & pulse rate recorded in a 1000 entry displayable and searchable historical statistics table
Electrode Selection: 5 standard leads (RA, LA, RL, LL, V)
Optional Languages: Chinese, English, Spanish, Turkish, Russian and French
Retains heart rate, body temperature, peripheral oxygen saturation (SpO2) and respiratory rate statistics for up to 72 hours
Features pause, review and trending options when observing waveforms

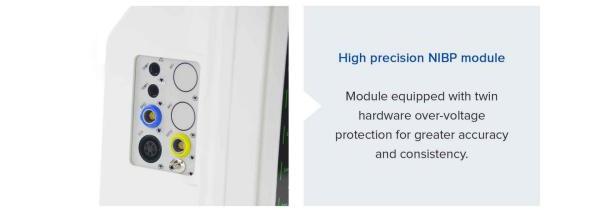

High precision noninvasive painless blood pressure measurement module, exceptional accuracy, great consistency, module equipped with twin hardware overvoltage protection
Alarms: Audible and/or visual alarms for heart rate, peripheral oxygen saturation (SpO2), noninvasive blood pressure and other alarms such as power disconnection or failure, alarm ranges fully adjustable
Application: Resistant to defibrillation & electro-surgical inter
At Puao Medical, we understand the crucial role The PDJ 3000 incorporates:
that precision plays in the field of patient •Waveform & parameter freeze, screen
monitoring. We recognize that even small capture,rollback and revlew capbability.
differences between what is and what is seen can •Search-able 1000 entry analytical patient
have profound implications for your patient and status table.
their care. •72 hour trend data retentlon

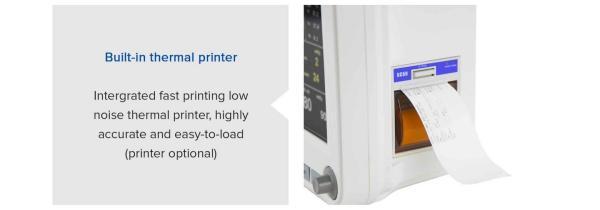

Thus it is with these concerns in mind,that we •Optional built-in data recorder,retains,
developed the PDJ 3000 multi-parameter patient records and exports text, waveforms or
monitor. Leveraging Puao Medical’s cutting edge other patlent informatlon.
acuity monitoring technology, the PDJ 3000 •Drug dosage calculation, titration tabling.
combines the best of versatile reliability, with a demonstration mode memory storage in case
solid foundation of monitoring knowledge to offer of power instability and other functions.
you a highly competent monitoring system, that
excels in both the ER and the bedside.
Comprehension At A Glance

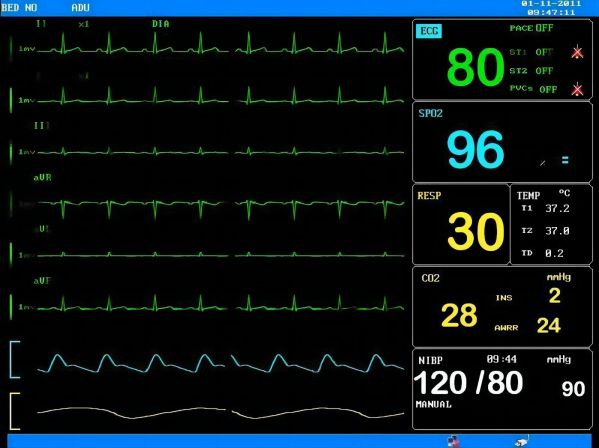

The high visibility 12.1 inch TFT color display is able to supports up to 9 waveforms simultaneously providing users an easly accesslble yet comprehenslve look at a patlent’s overall status. Viewable waveforms include: ECG, respiratory rate, NIBP temperature, SPO2 and more.
I Real time status indication
In the medical environment, its often critical to stay abreast of changes and developments ininformation. This is why we created a display system for the PDJ 3000, that succinctly andclearly provides real time notifications on the status of the patient, the alarms, the monitoring process, as well as the patient monitor itself.
II Intuitive Ul design
The trimmed down intuitive user interface of the PDJ 3000 designed with accessibility and convenience in mind, allows users to effortlessly access, toggle and adjust patient parameters,system settings & waveforms at the touch of a button.
Accessories & Other Components
Aside from it’s core features, the PDJ 3000 also features an independent oxygenation observation graphing module, a pacemaker suppresslon function for improved electrical reslstance and a battery monitoring system, that provides real time status update & alerts on battery usage.
Lithium Battery ECG Lead Cable Body Temperature Wire
Rechargeable lightweight Simultaneous multi-lead5 Comfortable patient and
long lasting lithium-ion channel(RA,LARL.LLV) user friendly skin body
battery ECG electrodes temperature sensor
Blood Oxygen Sensor Blood Pressure Cuff Electrical Ground Wire
Motion tolerant pulse Multipurpose versatile lmproves resistance to
oximetry sensor for qulck & non-invasive blood pressure defibrillation & electro
painless SPO2 reading cuffs surgical interference
The PDJ 3000 also includes a broad selection of other accessories for you to choose from:
•Adult diagnostic cannula •Connecting tube •Pedlatrlc blood pressure cuff
•ECG electrodes •Blood pressure cuff tube •Power cords
•Invasive BP sensor (optional] •Patient monitor paper
